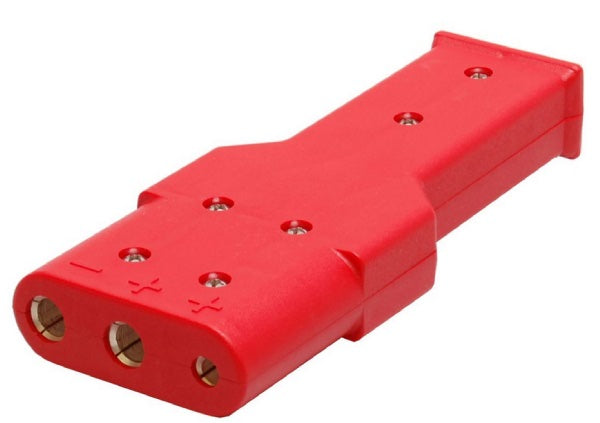

3-Pin Aircraft External Power Plug

3-Pin Aircraft External Power Plug

Prix habituel $75.75 CAD
Prix habituel Prix promotionnel $75.75 CAD
Frais d'expédition calculés à l'étape de paiement.

Part Number: 11-03158

Overview

This is a female 3-pin plug used to connect external 12-28 VDC power sources to an aircraft's airframe. It is built from red polycarbonate that assembles by screwing together, and is designed as an equivalent to the NATO AN2551 plug. The unit is corrosion resistant and includes a pin for solenoid activation.

Specifications

  • Part Number : 11-03158
  • Voltage : 12-28 VDC
  • Mates with : AN2552-3A or MS3506-1 external power receptacle
  • Standards : ISO 461 (BS4G173:1985) and appropriate MOD (Air) and NSN Standards
  • Weight : 0.7 kg
  • Contact material : solid copper, silver-plated
  • Recommended wire gauge : up to 2/0 AWG stranded
  • Continuous current : 240A
  • Peak current : 1500A
  • Solenoid trigger contact : 35A continuous
  • Wire reservoir ID : 0.474 in

Please Note

  • Wires must be torch-soldered to the contacts; too large to crimp
  • A chef's torch (or similar) is recommended to heat the solder well before inserting the cable
  • Compatibility confirmed for most late model Cessna aircraft, including the Cessna 177B Cardinal external power receptacle
  • Installation instructions provided as a separate PDF document
