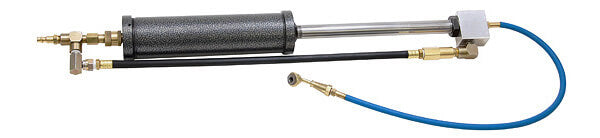

Aircraft Strut Pump 10X

Part Number: 12-03731

Overview

This strut pump lets you raise aircraft struts without placing the airplane on jacks. It uses a one-shot air delivery system, injecting small increments of high-pressure air with each stroke of the valve, giving controlled pressurization and reducing the risk of overpressurizing the strut. The unit is built with a lightweight aluminum cylinder and can also be used with nitrogen delivery systems.

Specifications

• Part Number : 12-03731
• Max Output Pressure : up to 1,500 PSI
• Pressure Magnification : True 10X, producing over 1,500 psi from a 150 psi air source
• Air Pressure Operating Range : 50 to 150 psi (100 psi recommended)
• Valve Rating : over 3,000 psi
• Cylinder Material : 6061-T6 Aluminum
• Delivery Hose Length : 24" High Pressure Delivery Hose
• Compatibility : Also works with Nitrogen delivery systems
• Origin : MADE IN U.S.A.
