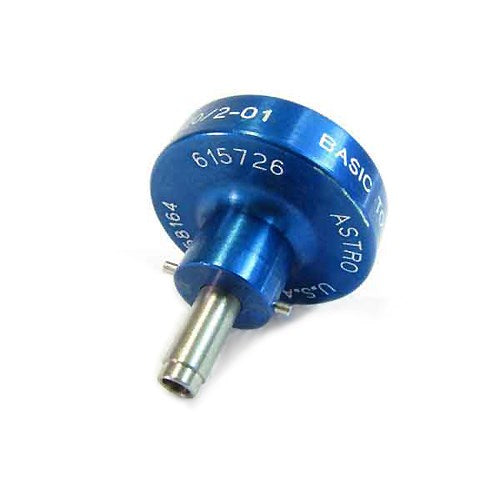

Astro Tool Bayonet Positioner M22520/2-10

Astro Tool Bayonet Positioner M22520/2-10

Prix habituel $199.75 CAD
Prix habituel Prix promotionnel $199.75 CAD
Frais d'expédition calculés à l'étape de paiement.

Part Number: 11-20363

Overview

This bayonet-style positioner is designed for size 20 pin and socket contacts fitted into MIL-C-38999 circular connectors. It works in conjunction with the 615717 crimp tool frame to properly position contacts during crimping. The part is identified under mil spec M22520/2-10 and corresponds to manufacturer number 615726.

Specifications

  • Manufacturer Part Number : 615726
  • Mil Spec : M22520/2-10
  • Used With (Crimp Tool Frame) : 615717, mil spec M22520/2-01
  • Contact Size : 20
  • Connector Standard : MIL-C-38999 circular connectors

Aircraft Eligibility

Compatible Contact Numbers : MS27490-20, MS27491-20, MS27492-20, MS27493-20, MS27494-20, M39029/56-351, M39029/57-357, M39029/58-363, M39029/87-474, M39029/87-475, M39029/87-476, M39029/87-477, M39029/88-486, M39029/88-487, M39029/88-488, M39029/88-489, M39029/89-498, M39029/89-499, M39029/89-500, M39029/89-501
