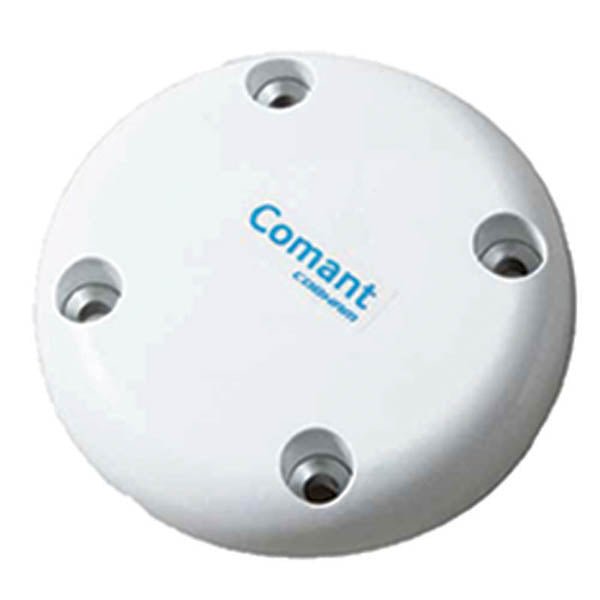

Comant CI-490-490 Iridium Round Antenna

Comant CI-490-490 Iridium Round Antenna

Prix habituel $1,058.00 CAD
Prix habituel Prix promotionnel $1,058.00 CAD
Frais d'expédition calculés à l'étape de paiement.

SKU:11-19434

Part Number: 11-19434

Overview

Comant's four through-hole round style mount Iridium antenna with TNC ports. Iridium C159a certified, designed for airborne Iridium-based telephone, email, asset tracking or safety services. Suitable for top mounting for both light and heavy fixed wing single engine / multiengine and business jet aircraft.

Specifications

  • RF - Iridium TX/RX: 1616-1626.5 MHz
  • VSWR: 1.5:1 Max
  • Polarization: RHCP
  • Radiation Pattern: Hemispherical
  • Impedance RF: 50 Ohms
  • Power Handling (TX): 6.5 Watts Average
  • Lightning Protection: DC Grounded
  • Gain: +3 dBic @ Zenith
  • Weight: 5.0 oz Max
  • Finish: Glossy White
  • Connector: TNC (female)
  • FAA TSO: C159a
  • RTCA Environmental: DO-160G
