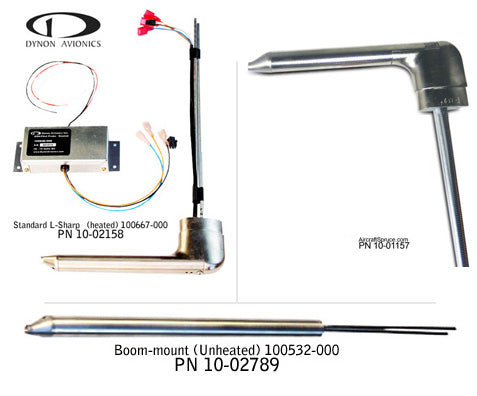

Dynon AOA Pitot Heated Large Tube No Bracket

Part Number: 10-02158

Overview

This probe combines airspeed sensing and angle of attack (AOA) sensing in a single AN5812-style pitot tube. It uses two pressure ports: one on the front face for standard pitot pressure, and a second on an angled surface below it for AOA measurement. Each port routes air through a separate line back to a compatible Dynon EFIS instrument, where readings are compared against calibration data specific to the aircraft. This heated version includes a nichrome heating element controlled by a dedicated pitot heater controller that maintains a constant temperature and can trigger a cockpit warning light in case of malfunction or shutdown.

Specifications

• Part Number : 10-02158
• Type : AN5812-style pitot tube with additional AOA pressure port
• Heating Element : Nichrome heating element
• Controller : Separate pitot heater controller unit supplied with the pitot

Please Note

• Mounting hardware for pitot tube needed for installation: PN 10-01820 (sold separately)
• Requires compatible Dynon EFIS-based instrument for operation (not included)
• Calibration to individual aircraft required via pitch oscillations and stalls, performed through the instrument face
