JPI TIT Probe Sensor Kit with Shield and Extension Wire (M111T)

JPI TIT Probe Sensor Kit with Shield and Extension Wire (M111T)

Prix habituel $269.95 CAD
Prix habituel Prix promotionnel $269.95 CAD
Frais d'expédition calculés à l'étape de paiement.

Part Number: 10-27090

Overview

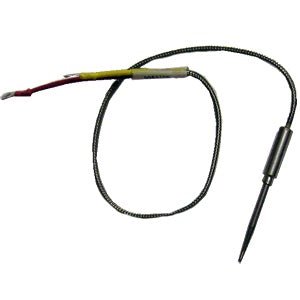

This kit provides a Turbine Inlet Temperature (TIT) probe designed for the JPI EDM engine monitoring option. The probe mounts in the exhaust stack accumulator, positioned close to the turbine inlet on the wastegate side. It comes complete with the mounting hardware needed for installation.

Specifications

  • Part Number : 10-27090
  • Model : M111T
  • TSO : M-111-T
  • Max Installation Depth : 1/2 inches
  • Distance from Turbine Inlet : approximately 2-4 inches
  • Installation Location : wastegate side of the turbine
  • Included Clamp Size : #48 stainless steel clamp
  • Kit Contents : 1 Thermocouple Type K TIT Probe, 1 Stainless Steel Clamp Thimble, 1 Stainless Steel Exhaust Seal Washer, 1 Stainless Steel Screw Type Clamp (listed twice in source)
