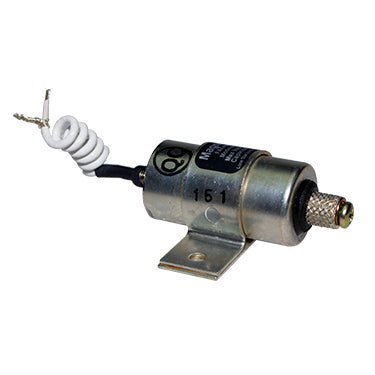

Lonestar Magneto Filter (Feed-Thru) - FAA/PMA Approved

Lonestar Magneto Filter (Feed-Thru) - FAA/PMA Approved

Prix habituel $230.95 CAD
Prix habituel Prix promotionnel $230.95 CAD
Frais d'expédition calculés à l'étape de paiement.

Part Number: 07-00713

Overview

This feed-through magneto filter is designed to reduce electrical noise generated by Bendix magneto ignition systems during spark plug firing. Left unfiltered, this noise can interfere with onboard avionics such as audio panels, radios, navigation units, instruments, and autopilots. The filter is built with a fail-safe feed-through design and has been adopted by avionics shops, OEM manufacturers, and FBOs for noise suppression on aircraft magneto circuits. It carries FAA-PMA approval and fits several Bendix magneto models.

Specifications

  • Part Number : 07-00713
  • Certification : FAA-PMA approved
  • Compatible Magnetos : Bendix series S20, S21, S200, D3000, D4000
  • Design : Feed-thru, fail-safe design
  • Working Voltage : 1000 VDC
  • Break Down Voltage : 5000VDC
  • Capacitance : .05 uf - self healing technology
  • Cable : Braided, shielded, silver plate over copper, supplied in 8 inch lengths
  • Mounting Clamp : Heavy duty
  • Temperature Range : -35°C to +80°C
  • Max Current : 20 amps
  • Documentation : Installation Diagram (PDF)
