• Piper Type External Power Connector Socket
1 1

Piper Type External Power Connector Socket

Piper Type External Power Connector Socket
$85.90 CAD
$85.90 CAD
Frais d'expédition calculés à l'étape de paiement.

Part Number: 11-00500

Overview

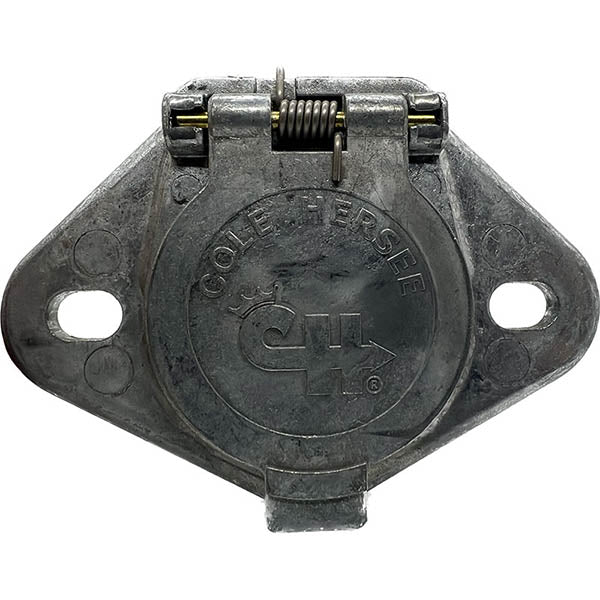

This is a Cole Hersee 11041 socket designed for external power connection using the Piper-style interface. It features a single-pole, self-grounding design with a diecast housing and a spring-loaded door for protection. The brass contact has an insulated tip to guard against short circuits, and a rubber boot shields the terminals and connections. It is designed to mate with the 11042 plug.

Specifications

  • Manufacturer / Model : Cole Hersee 11041
  • Type : Piper type external power connector socket
  • Grounding : Self-grounding, single pole
  • Housing : Diecast housing, spring-loaded door
  • Contact : Solid brass contact, 3/8 (9.5mm) diameter, insulated tip
  • Terminal Protection : Rubber boot
  • Cable Capacity : Accepts up to 0AWG cable
  • Mounting Hole : 2 (50.8mm) diameter
  • Flange Holes : 21/64 (8.6mm) diameter, 2 15/16 (74.6mm) on centers
  • Mates With : 11042 plug
  • Part Number : 11-00500
Afficher tous les détails
