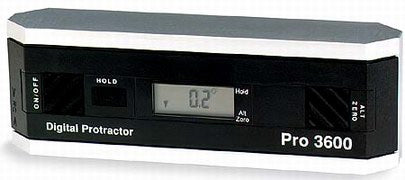

Pro 3600 Digital Protractor

Part Number: 12-00759

Overview

This digital protractor gives an instant readout of level, plumb, and any angle across a full 360-degree range. Its aluminum frame with built-in base-plate forms a light and rigid platform for the internal sensor and microprocessor. A serial interface allows connection to a computer for SPC record keeping.

Specifications

• Part Number : 12-00759
• Range : 360 degrees (90 degrees X 4)
• Resolution : 0.01 degrees (0 deg. - 10 deg.); 0.10 degrees (10 deg. - 90 deg.)
• Accuracy : +/-0.05 degrees (0 deg. - 10 deg.); +/-0.10 degrees (80 deg. - 90 deg.); +/-0.20 degrees (10 deg. - 80 deg.)
• Repeatability : 0.05 degrees
• Cross Axis Error : Minimal
• Serial Port Type : RS-232
• Connector : 10 Pin, rectangular
• Supply Voltage : 9 volt alkaline battery
• Battery Life : 500 hours (typical)
• Operating Temperature : -5 deg.C - +50 deg.C (23 deg. F - +122 deg. F)
• Storage Temperature : -20 deg.C - +65 deg.C (-4 deg. F - +149 deg. F)
• Weight : 289 grams (10.2 ounces)
