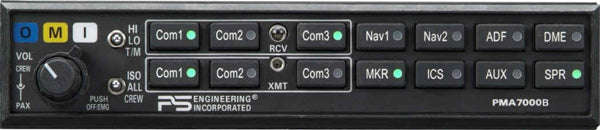

PS Engineering PMA 7000Bt Audio Panel with Bluetooth - Unit Only, TSO'd

Part Number: 11-13663

Overview

This audio panel from PS Engineering is designed as a direct slide-in replacement for the PMA 7000 Legacy, KMA 28, and SL 15 units. It integrates the IntelliVox automatic voice-operated intercom system, eliminating the need for manual squelch adjustment. The panel supports three communication radios, with Com 3 convertible to a full-duplex cellular telephone interface, and offers a Split Mode allowing pilot and copilot to monitor separate com channels independently. Control is handled entirely through push buttons, aside from a single concentric volume knob for crew and passenger intercom levels.

Specifications

• Part Number : 11-13663
• Certification : FAA TSO'd for Certified Aircraft
• Item Included : Unit only
• Replacement For : PMA 7000 Legacy / KMA 28 / SL 15
• Intercom System : 6-Place IntelliVox automatic VOX intercom with individually gated microphones
• Com Capability : 3-Com, with Com 3 convertible to full duplex cellular telephone interface
• Isolation Modes : 3 - Pilot Isolate, All, Crew
• Unswitched Inputs : 4 - unswitched and unmuted
• Music Source Inputs : 2 hi-fidelity stereo music source inputs
• Music Mute Modes : 2 - Mute On and Mute Off
• Marker Beacon Receiver : Built-in
• Warranty : 2-Year Pro-Support Warranty
• Harness Standard : IPC-WHMA-A-620

Please Note

• Unit only - rack and connector kit not included
• Must be sold with a custom harness to maintain factory warranty; units sold without harness receive no factory warranty
• Custom harness orders are built to order and require all configuration questions to be completed; incomplete orders will cause delays
• For custom harness questions, contact avionics@aircraftspruce.com or call 800-826-3160
