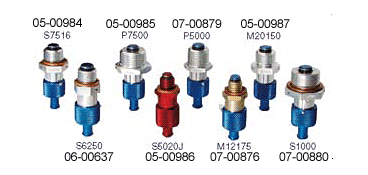

Saf-Air Oil Drain Valve 5/8-18 S6250

Saf-Air Oil Drain Valve 5/8-18 (S6250) — for Continental engines (cross-references Aeroquip AE99950G).

Part Number : 06-00637. MFR model # : S6250.

Overview

Lock Open Oil Drain Valves. Changing hot engine oil has never been easier! With the SAF-AIR oil drain valve, no wrench is needed to remove the drain plug. A simple push and turn of the SAF-AIR valve locks it in the open position. The valve is made completely from anodized aluminum and stainless steel components. These materials are used throughout the aircraft industry due to their strength and durability. FAA & PMA approved.

Product notes:

• Never fly the aircraft with the drain hose attached to the oil drain valve.
• Make sure that your landing gear will not activate the oil drain valve when you retract the gear inside the fuselage.
• The valve may fit your engine, but it is your responsibility to make sure it will work with your application.

Features

• Push and turn to lock open.
• Effortless operation with a sure-grip knob.
• Double-sealed to prevent leakage.
• All valves can be rebuilt.

Specifications

• Material: 6061 aluminum and 302 stainless steel.
• Finish: Anodized.
• Temperature: -60° to +260°F (-51° to +127°C).
• Thread: 5/8-18.
• O-rings: seal kits available (S6250 uses 2× AN6227B-6, 1× AN6227B-7, plus 1× AN900-10 copper crush gasket).
