Trans-Cal Altimeter Encoder 30K SSD120-30N

Part Number: 11-06489

Overview

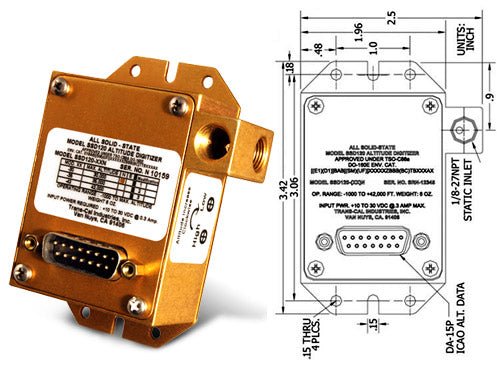

This altitude encoder is marketed as the smallest and lightest unit of its type. It is available in a standard configuration or in a modified version (MOD1) intended for use with specific NARCO transponders. The unit ships ready to install with the required mating hardware included.

Specifications

• Part Number : 11-06489
• Model : SSD120-30N
• Alternate Model : SSD120-30N-MOD1 (for NARCO AT-5A, 6A, 50, 50A Transponders)
• Size : 2.5"W x 3.42"H x 1.38"L
• Operating temperature : -20ºc to +70ºc
• Operating altitude : -1000' to +30,000' (Available in altitudes from 30,000 up to 100,000)
• Accuracy : +50' from -1000' to +30,000
• Weight : 5.9 oz.
• Voltage/Current : 14 or 28 VCD at 0.270 Amps
• Warm-up time : +20ºc to +70ºc: No warm-up; -20ºc to +20ºc: 30 seconds
• Average MTBF : 9.7+ years
• Warranty : 42-month manufacturer direct replacement
• Included items : Mating Connectors, Cable Clamps, Mounting Bracket

Please Note

• Narco AT-5A, AT-6A, AT-50, or AT-50A transponders will not accept data from the SSD120-(XX)N(*) encoder without a modification to remove output decoupling capacitors; the MOD1 version already includes this modification.
