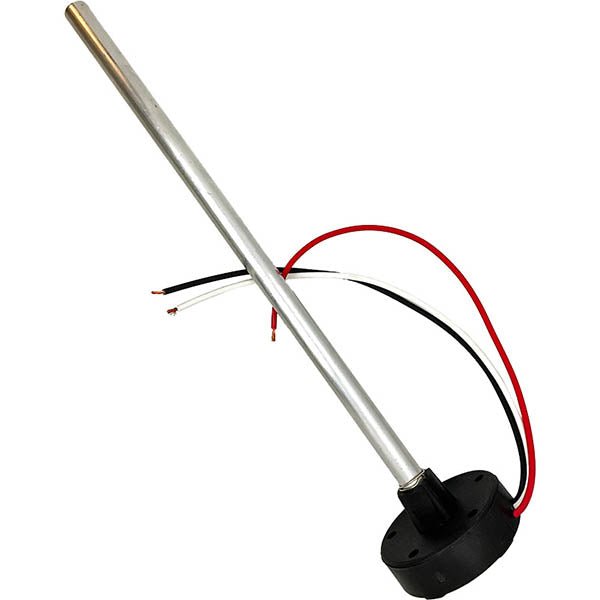

Westach Capacitance Fuel Level Sender AP-H12-D120-5V

Westach Capacitance Fuel Level Sender AP-H12-D120-5V

Prix habituel $331.00 CAD
Prix habituel Prix promotionnel $331.00 CAD
Frais d'expédition calculés à l'étape de paiement.

Part Number: 10-00797

Overview

This sender measures fuel level using capacitance technology and is built as a rigid, non-bendable probe. It accepts a 12 or 24 VDC input and delivers a 0-5 VDC output signal, making it compatible with standard fuel gauge instrumentation. The unit operates within a nominal supply range and draws minimal current during operation.

Specifications

  • Part Number : 10-00797
  • Catalog Description : Westach Fuel Snd AP-H12-D120-5V
  • Sender Type : Capacitance fuel level sender
  • Length : 12"
  • Design : Non-bendable
  • Outer Diameter : 1/2" OD
  • Input Voltage : 12/24 VDC
  • Output Voltage : 0-5 VDC
  • Nominal Supply Range : 11-28 VDC
  • Current Draw : less than 30 milliamps (.03 amps)
