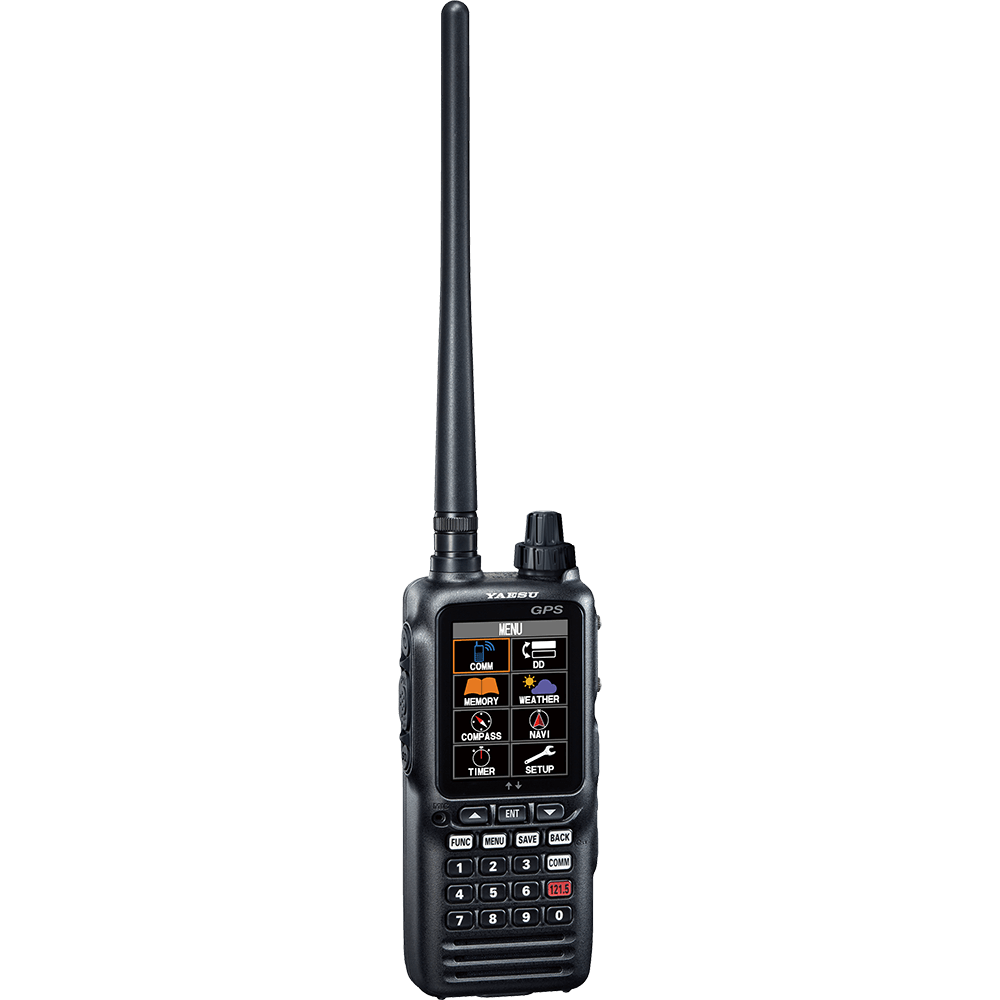

Yaesu FTA-850L Handheld Airband Transceiver

Part Number: 11-18962

Overview

The FTA-850L is a portable airband transceiver designed for pilots, combining a 2.4-inch full-color TFT display with navigation support based on ILS, VOR, or GPS signals. It stores up to 400 memory channels and supports wireless operation via a built-in Bluetooth module, compatible with commercial headsets or Yaesu's optional SSM-BT10 unit. The housing is polycarbonate, rated IPX5 for water resistance and tested to MIL-STD-810H standards. The unit ships with a set of charging and power accessories along with a 3-year waterproof warranty.

Specifications

• Part Number : 11-18962
• Frequency Range (RX) : 108.000 to 136.9916 MHz (NAV and COM) / 161.650 to 163.275 MHz (Weather Channels) / 329.150 to 335.000 MHz (Glide Slope)
• Frequency Range (TX) : 118.000 to 136.9916 MHz
• Channel Spacing : 25 kHz/8.33 kHz
• Emission Type : TX: AM RX: AM & FM
• RF Power Output : 6.0 W (PEP), 1.8 W (Carrier Power)
• Water Protection Rating : IPX5
• Certification : MIL-STD-810H
• GPS Receiver Channels : 66 Channels
• Case Size (W x H x D) : 2.4" x 5.2" x 1.3" (60 x 132 x 34 mm) w/ SBR-39LI, w/o Knob & Antenna
• Weight : 13.9 oz (395 g) w/ SBR-39LI, Antenna and Belt Clip
• Battery Pack : SBR-39LI 7.2V, 2200 mAh
• Display : 2.4" TFT Color Display (240 x 320 pixel)
• Memory Channels : 400 Memory Channels with 14 Character Alphanumeric Tags
• Warranty : 3 year waterproof warranty

Please Note

• SSM-BT10 Bluetooth headset is optional and sold separately
• Bluetooth headset used with the unit must be commercially available and is not included
