Alternator Drive Coupling Tool Kit

Part Number: 08-17440

Overview

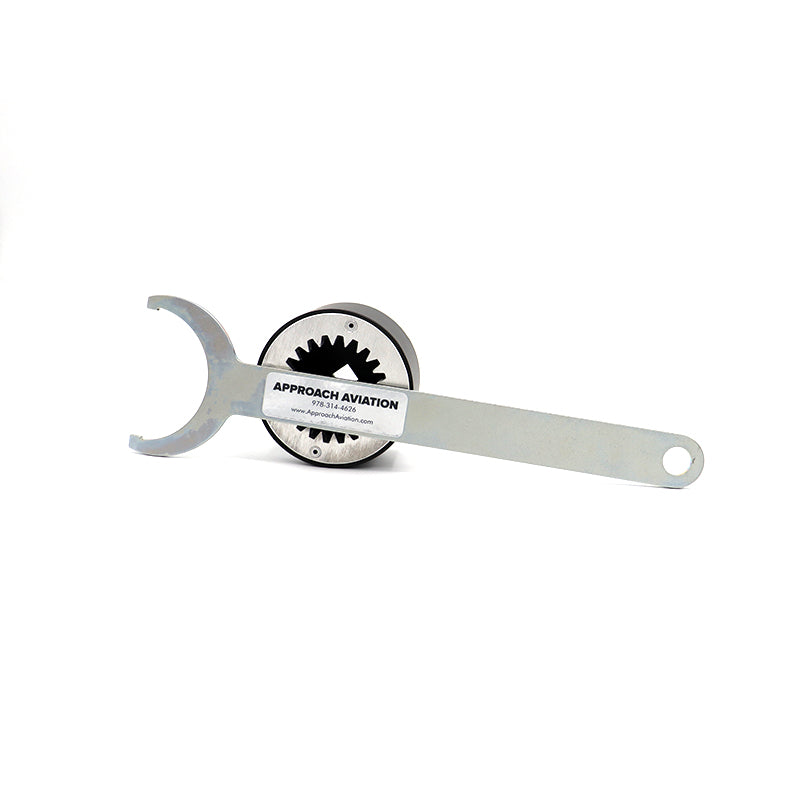

This tool kit supports the inspection, installation, and removal of alternator drive couplings on several Continental piston engine series. It includes a spanner wrench and a coupling gear socket built to protect the steel coupling gear during service work. The coupling itself acts as a shear point that protects the engine if the alternator fails, so periodic inspection is required to catch wear or improper installation before it causes engine damage. Using dedicated tools like this kit helps avoid misdiagnosing coupling slippage as an alternator failure.

Specifications

• Part Number : 08-17440
• Catalog Description : Alternator Drive Coupling Tool Kit AdckiT2
• Engine Eligibility : Continental C-75/85/90/115/125/145, E-165/185/225, O-200/300, IO-240/360 series engines, in addition to Continental O-520/550 series engines
• Inspection Interval : Every 500 hours or any time the alternator is removed from the aircraft
• Torque Wrench Requirement : Calibrated 3/8 torque wrench (as specified in the engine maintenance manual)
• Included Items : Steel Spanner (Designed for Elastomeric Couplings Only), Steel/Aluminum Drive Gear Socket, Small bore engine adapter

Please Note

• Steel spanner is designed for elastomeric couplings only
• Calibrated 3/8 torque wrench required for gear slippage check, not included in this kit
