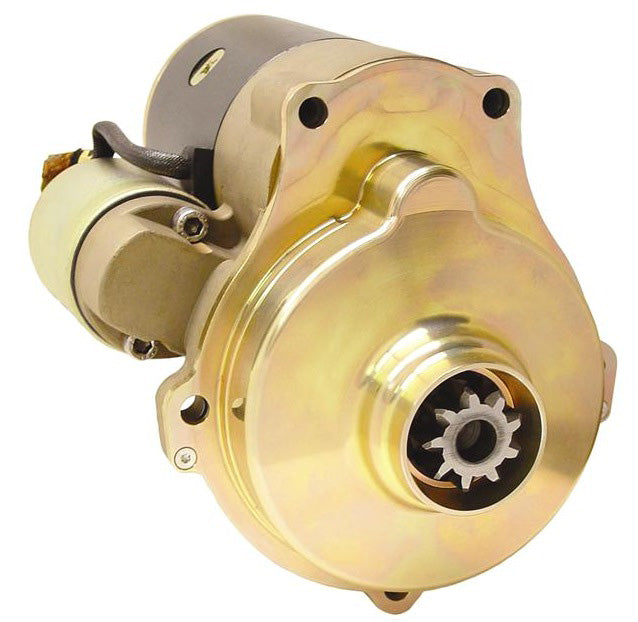

B&C BC320-1 Starter for Continental Engines - 12V

Part Number: 07-06716

Overview

This is a complete replacement starter unit for Continental O-200 or O-240 engines, designed to eliminate common issues found in older starters such as worn clutches and cracked pinion gears. It includes the motor, clutch, and pinion gear as a single ready-to-install assembly. The unit has been validated by Continental through extensive start-cycle testing and is compatible with certificated aircraft installations.

Specifications

• Part Number : BC320-1
• Catalog Number : 07-06716
• Voltage : 12V
• Engine Compatibility : Continental 0-200 or 0-240
• Weight Reduction : 4.3 to 5.2 lbs. lighter depending on whether replacing a key-type or pull-cable type starter
• Testing : Tested by Continental with over 5000 start cycles without a problem
• Endorsement : Recommended by Rutan Aircraft Factory

Please Note

• Available with or without STC; buyer must specify which version is needed
• Installation kit 07-06752 required separately if replacing a key-type starter
• Bearing removal kit 07-06753 available separately to remove needle bearing before installation
• Installation kit 07-06754 required separately if replacing a pull-cable type starter
• A steel shaft installed in the engine case must be cut off before installing the BC320
• Starter must be ordered to match battery voltage
