Flap Track Wear Gauge 950

Part Number: 05-02145

Overview

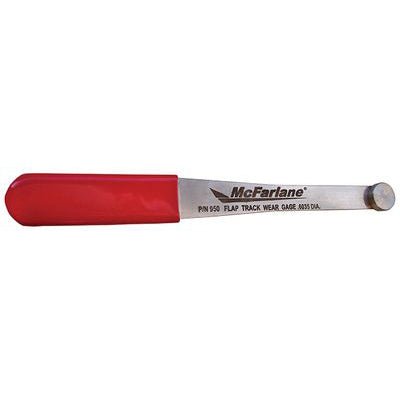

This gauge is designed by McFarlane Aviation Products to check whether a Cessna flap track has worn past its service limits. The tool works by running a gage plug along each slot of the flap track while checking that it cannot enter the slot; the flaps should be repositioned as needed to inspect the full length of each slot. If the gage plug enters a slot at any point, the flap track is considered worn beyond service limits.

Specifications

• Part Number : 05-02145
• Application : Cessna flap track
• Gage Diameter : .6035 inches
• Diameter Tolerance : +.000/-.002

Please Note

• Gage diameter should be periodically verified using a calibrated micrometer.
