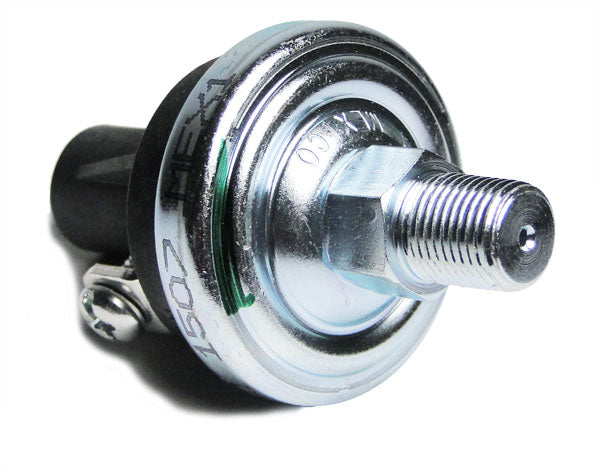

Hobbs Hour Meter Pressure Switch M4006-4

Part Number: 10-00813

Overview

This pressure switch is designed to activate an hour meter circuit once a set pressure threshold is reached. It remains open until pressure rises to the specified closing point, at which time the single circuit closes. The switch body is sealed against weather exposure and terminates in a standard pipe thread fitting for installation.

Specifications

• Part Number : 10-00813
• Catalog Description : Hobbs Hr Mtr Pres Swch M4006-4
• Switch Type : Normally open
• Closing Pressure : 4 PSI
• Circuit : Single circuit with two insulated terminals
• Contacts : Silver
• Case : Weatherproof
• Connection : 1/8" male pipe thread

Please Note

• For water applications (e.g. Rotax), use P/N 10-00326 Honeywell Hobbs Hour Meter Pressure Switch 76575-4 instead
