McFarlane Seat Roller Kit 1 - Articulating Seat, FAA-PMA

Part Number: 05-00425

Overview

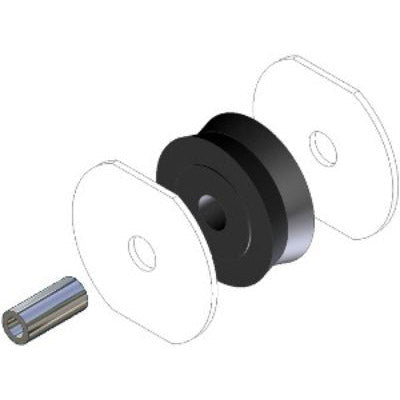

This kit supplies FAA-PMA replacement components for the articulating (infinitely adjustable) pilot seat found in Cessna single-engine aircraft, supporting compliance with the periodic seat inspection and replacement requirements of A.D. 2011-10-09. The rollers are machined from extruded stock for improved surface finish and strength, the bushings are alloy steel for extended wear life, and the wear washers use a tough acetyl plastic for better resistance to wear and aging. Since seat type was a factory option, these parts are not tied to a specific aircraft serial number.

Specifications

• Part Number : 05-00425
• Catalog Description : McFarlane Seat Roller Kit 1 Articulating Seat FAA-PMA - SEAT-KT-1
• Certification : FAA-PMA
• Compliance : A.D. 2011-10-09
• Equivalent To : Four Cessna 1714000K200 kits
• Roller Material : Machined from extruded stock
• Bushing Material : Alloy steel
• Wear Washer Material : Acetyl plastic
• Seat Type : Infinitely adjustable / articulating seat, identified by two adjustment crank handles; backrest angle adjusted with a crank
• Applicability : Cessna single engine aircraft 1963 through 1986; some 336-337 series aircraft; all seats in the 177 Cardinal (uses large seat roller)

Please Note

• Not serial number specific; seat type must be verified as it was a factory option
• Not used on Cessna 150-152 models
• Related to compliance with A.D. 2011-10-09 - verify applicability to your aircraft
