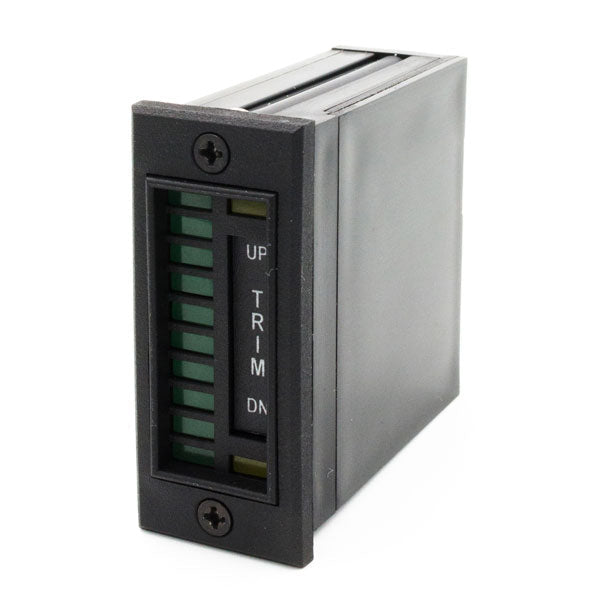

Rac RP4 LED Position Indicator

Part Number: 11-16285

Overview

The RP4 is a cockpit-mounted indicator that displays the position of a servo output shaft using LED lighting. It can be mounted either horizontally or vertically depending on installation needs. This unit comes as the standard position indicator in Ray Allen trim systems, though it is also sold on its own for applications like cowl flap or wing flap indication. Brightness can be reduced for use during night flight.

Specifications

• Part Number : 11-16285
• LED Count : 10 LEDs
• Faceplate Dimensions : 1.75"(45 mm) X .75(19 mm)
• Depth : 1.6(41 mm)
• Mounting Orientation : Horizontal or vertical
• Included Label : RP4-L1 (Elev1, Elev2, Ail, Rudder, Flaps)

Please Note

• RP4-L2 label (Cowl Flaps, < >, on/off) is available separately, not included with base unit
