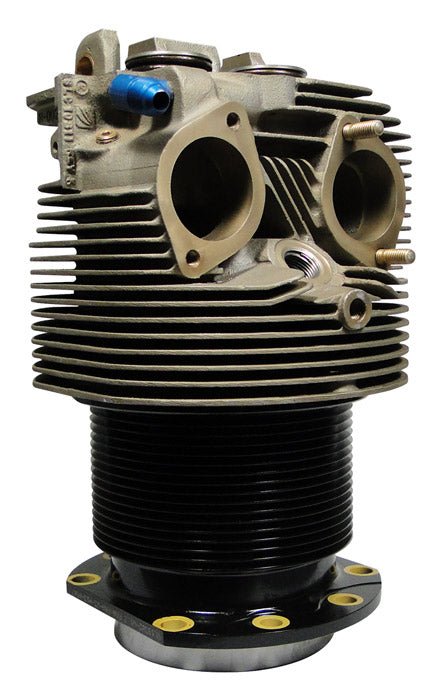

Superior Millennium Cylinder SA10200-A21P Power Assembly

Part Number: 08-10909

Overview

This power assembly is a Superior Millennium cylinder built with steel barrel walls of consistent hardness, intended to support even wear under high temperature and pressure conditions. The intake and exhaust ports are volumetrically matched for performance, and the port walls are thickened to resist warping and cracking. Head fins follow a computer-designed layout aimed at more even heat distribution and fewer localized hot spots. The assembly is manufactured from alloys selected to meet strength and porosity requirements above standard industry levels.

Specifications

• Part Number : 08-10909
• Catalog Description : Superior Millennium Cylinder SA10200-A21P Power Assembly
• Engine Configurations (C75) : -8, -8F, -8FH, -8FHJ, -8FJ, -8J, -12, -12F, -12FH, -12FHJ, -12FJ, -12J, -12B, -12BF, -12BFH, -15, -15F
• Engine Configurations (C85) : -8, -8F, -8FHJ, -8J, -12, -12F, -12FH, -12FHJ, -12FJ, -12J, -14F, -15, -15F
• Documents : Technical Specifications (PDF), Warranty Form

Aircraft Eligibility

Parts per Assembly : 1 - Guide, NI-Resist (SA10205); 1 - Guide, Int. (SA10209); 1 - Insert, Exh. (SA2106); 1 - Seat, Int. (SA641793); 2 - Helicoil (MS9018-05/2-52); 2 - Housing, Push Rod (SA21284); 4 - Bushing, Rocker Shaft (SA22949 M05); 2 - Stud (SA401870); 2 - Stud (SA402151); 1 - Plug (MS20913-1); 1 - Cylinder Stud (SA10200-A1); 1 - Cover, Valve (SA40762); 1 - Valve, Exh. (SA10204); 4 - Lock (SA21361); 1 - Retainer (SA24026); 2 - Spring (SA24029); 1 - Retainer, Valve Spring (SA24044); 2 - Seat, Valve Spring (SA625961); 1 - Valve, Int. (SA641792); 2 - Spring Valve (SA24030); 1 - Shaft
