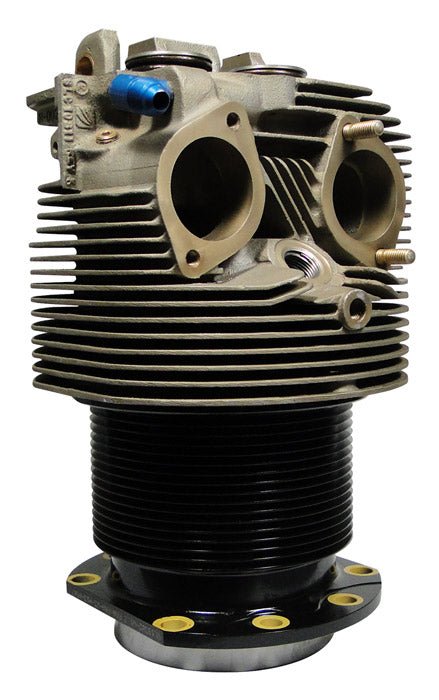

Superior Millennium Cylinder SA10200-A22P C-90

Part Number: 08-10910

Overview

This cylinder features a through-hardened steel barrel designed for consistent wear resistance under high temperature and pressure conditions. The intake and exhaust ports are volumetrically matched to support optimal airflow, while thicker port walls help prevent warping and cracking. A computer-generated fin pattern on the head promotes more even heat dissipation across the surface. The unit is built from high-grade alloys selected to meet or exceed industry strength and porosity standards.

Specifications

• Part Number : 08-10910
• Catalog Description : Superior Millennium Cylinder SA10200-A22P C-90
• Engine Configurations : C90 -8F, -8FJ, -12F, -12FH, -12FJ, -12FP, -1 4F, -14FH, -14FJ, -16F

Aircraft Eligibility

Parts per Assembly : 1 - Guide, Ni-Resist (SA10205); 1 - Guide, Int. (SA10209); 1 - Insert, Exh. (SA2106); 1 - Seat, Int. (SA641793); 2 - Helicoil (MS9018-05/2-52); 2 - Housing, Push Rod (SA21284); 4 - Bushing, Rocker Shaft (SA22949 M05); 2 - Stud (SA401870); 2 - Stud (SA402151); 1 - Plug (MS20913-1); 1 - Cylinder Stud (SA10200-A1); 1 - Cover, Valve (SA40762); 1 - Valve, Exh. (SA10204); 4 - Lock (SA21361); 1 - Retainer (SA24026); 2 - Spring, Valve (SA625957); 2 - Spring (SA625958); 1 - Retainer, Valve Spring (SA24044); 2 - Seat, Valve Spring (SA625961); 1 - Valve, Int. (SA641792); 1 - Shaft
