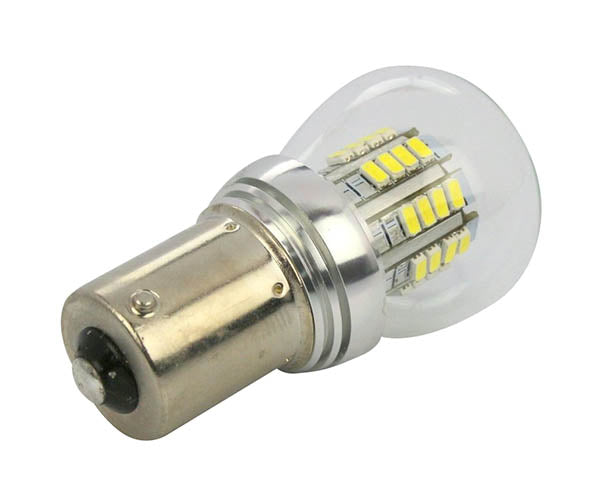

Wingtip Navigation LED Bulb Set - Red & Green

Part Number: 11-14885

Overview

This bulb set offers an LED alternative to the incandescent RA-7512 (14V) and W-1290 (28V) reflector-type navigation bulbs used on many General Aviation aircraft. The set contains one red and one green LED bulb, each fitted with a BAY15S base compatible with most Grimes and Whelen navigation light fixtures. Operating across a 10-30VDC range, the LEDs draw less current than incandescent bulbs while producing a brighter nav light output. The units have been tested in Grimes and Whelen navigation lights as well as Grimes rotating beacons.

Specifications

• Part Number : 11-14885
• Replaces : RA-7512 (14V) and W-1290 (28V) reflector-type nav bulbs
• Colors : Red LED and Green LED
• Base : BAY15S base (center contact; 2 off-set side retainers)
• Voltage : 10-30VDC compatible; 14VDC and 28VDC compatible
• Power : 2.8 Watts
• Current draw : less than 220mA @13.8V
• Brightness : About 30% brighter than incandescent
• Rated life : 50,000 hours
• Dome : Fully sealed glass dome
• Fixture compatibility : Fits most Grimes and Whelen Navigation light fixtures
• Applications : Rotating Beacons and Navigation Lights
• In The Box : Two RA-7512 LED replacements (one Red LED, one Green LED), BAY15S base

Please Note

• Experimental Aircraft Only
• For Certified aircraft: these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration"
